Beschrijving

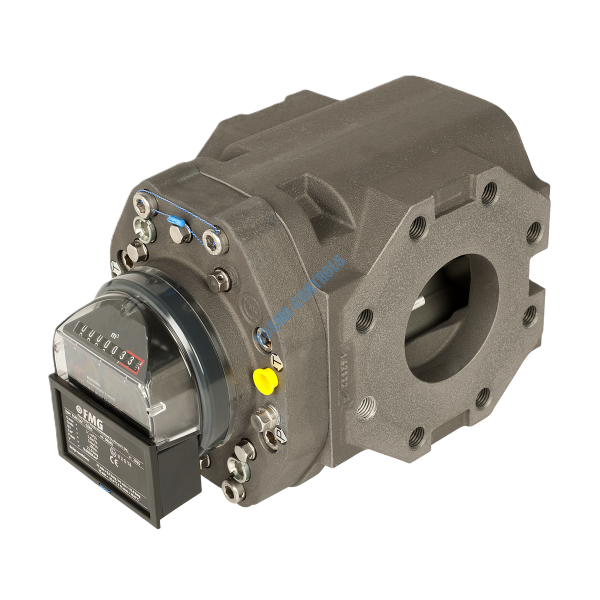

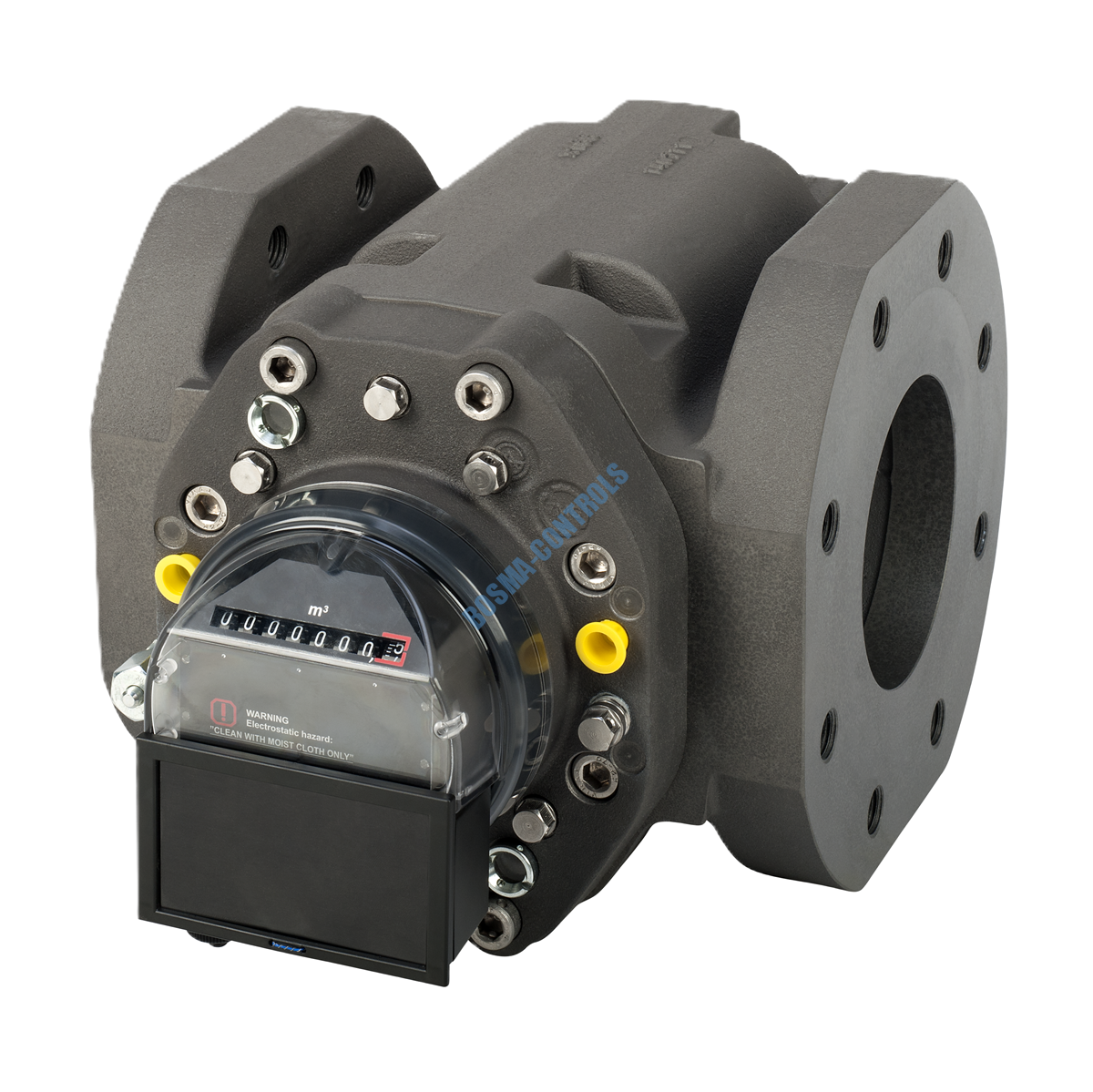

- Rotorgasmeter FMR-G160-DN80
- model: FMR G160 DN080 – PN 16 1.43dm³
- size / flange connection: DN080 – PN 16
- meterbody material: Aluminium
- coating: Standard Hard Anodized
- installation length: 241 mm
- volume: 1.43 dm³
- meter shape: Uni-Directional
- flow direction preset: Left-Right
- approval: T10372-MID: Class 1 – Standard accuracy according to OIML R137
- measuring range: G160: Qmax = 250 m³/h, Qmin = 1.6 m³/h
- medium: Natural gas (CH4)
- classification: Group 1
- pressure range: 0 – 16 bar
- temperature range: -25 °C / 55 °C
- press. measuring point: 2x 1/4NPT Plugged (sealable)
- temp. measuring point: Thermowell (integrated)
- high frequency pulser: Prepared for Optical sensor
- lubrication option: —
- mounted options: n.a.
- index head type: Basic Index (IP67) with ENCODER
- electronic options: 2xLF + 1xTamper – 3711 Reed Switch Unit
- mechanical options: n.a.
- –
- index readout: 1 tr = 1 m³ – 1m³ = 1 imp [LF] – [ENC]LF=OFF
- index connector: 1x Binder 423 – 6 pins Male
- test medium: Air under atmospheric conditions
- number of testpoints: 3 test points
- packing: Carton
- tag plate: —
- documents : Installation manual; Combined Inspection + Calibration certificate;
Declaration of conformity; language of documents: EN - accessories: Oil Morlina (total 100 ml)
- 1x Binder 423 -connector – Female
Test point flows: Qmax, 25%, Qmin
ATEX marking: II 2 G Ex h IIB T4..T6 Gb (-25°C ≤ Ta ≤ +55°C)
FMR-G160-DN80
